Architecture

---

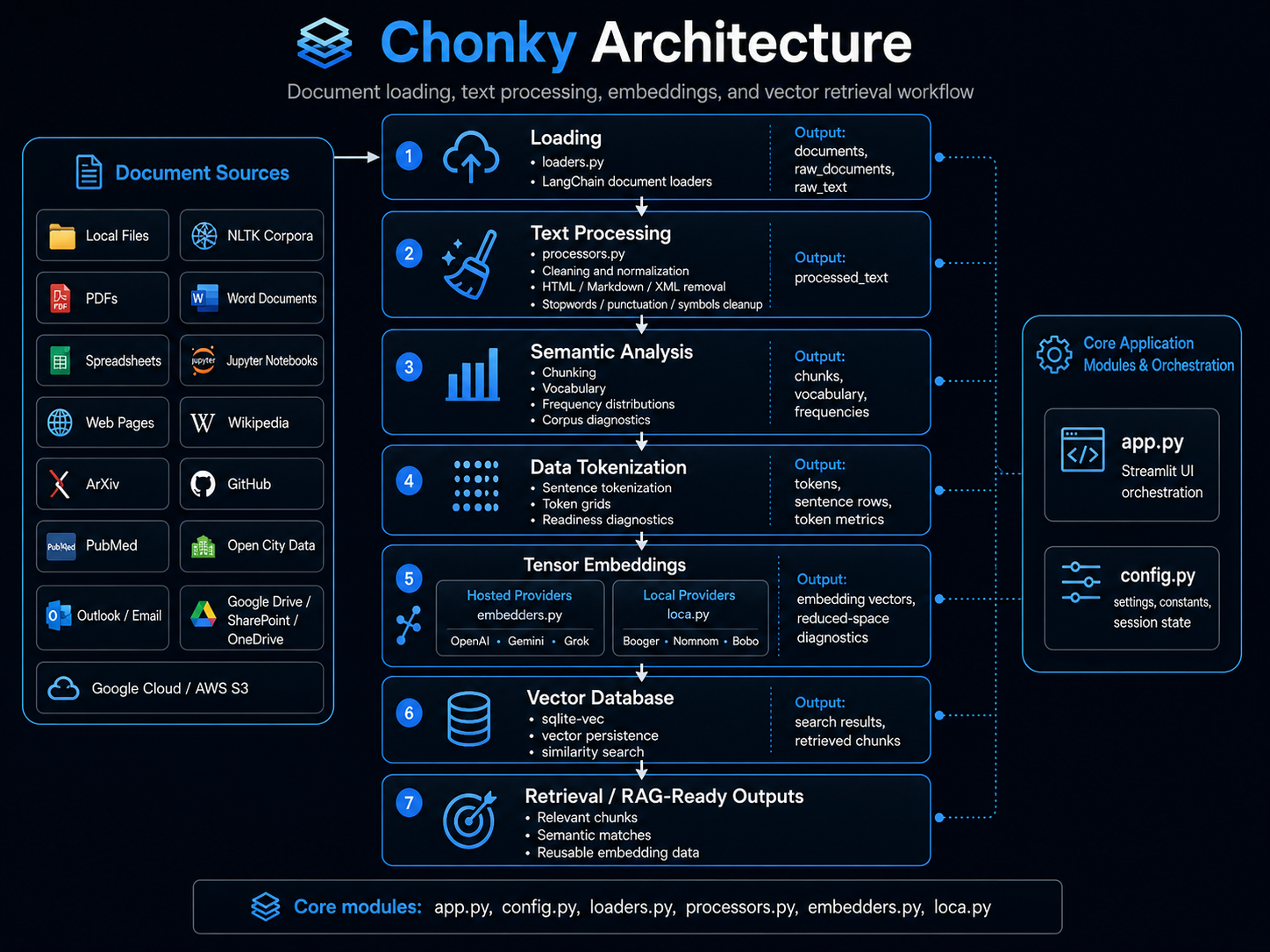

Chonky is organized as a staged document-processing pipeline. The application moves content from source documents into normalized text, semantic chunks, token diagnostics, embedding vectors, vector storage, and retrieval-ready outputs.

The architecture keeps the Streamlit interface separate from the reusable processing modules. app.py coordinates the user workflow, config.py centralizes settings and session defaults, loaders.py handles document ingestion, processors.py handles text transformation and analysis, embedders.py handles hosted embedding providers, and loca.py handles local GGUF embedding models.

🧭 Purpose

The architecture is designed to support a complete document intelligence workflow:

1. Load documents from local, web, cloud, public-data, notebook, and email sources.
2. Normalize source material into consistent LangChain Document objects.
3. Clean and transform raw text into analysis-ready text.
4. Generate chunks, vocabulary, frequency distributions, and token diagnostics.
5. Produce hosted or local embedding vectors.
6. Persist vectors with sqlite-vec.
7. Run similarity search and return retrieval-ready chunks.

This structure keeps each workflow stage explicit, testable, and replaceable.

🧱 Core Workflow

Stage	Module	Responsibility	Primary Output
Loading	loaders.py	Loads documents from files, web sources, public repositories, cloud storage, notebooks, email, and corpora.	documents, raw_documents, raw_text
Text Processing	processors.py	Cleans, normalizes, parses, tokenizes, and prepares text for downstream analysis.	processed_text
Semantic Analysis	processors.py	Builds chunks, vocabulary, frequency tables, and corpus diagnostics.	chunks, vocabulary, frequencies
Data Tokenization	processors.py	Produces sentence rows, token grids, token metrics, and readiness diagnostics.	tokens, sentence rows, token metrics
Tensor Embeddings	embedders.py, loca.py	Generates hosted or local embedding vectors from processed text and chunks.	embedding vectors, reduced-space diagnostics
Vector Database	app.py, sqlite-vec	Persists vectors and supports semantic similarity search.	search results, retrieved chunks
Retrieval Outputs	application workflow	Returns semantically relevant chunks for analysis, retrieval, and RAG-ready downstream use.	relevant chunks, semantic matches

📥 Document Sources

Chonky accepts a broad range of document inputs through the loading layer.

Source Type	Examples
Local files	Text, CSV, PDF, Word, Excel, PowerPoint, Markdown, HTML, JSON, XML
Corpora	NLTK Brown, Gutenberg, Reuters, WebText, Inaugural, State of the Union
Web sources	Web pages, recursive crawls, Wikipedia, ArXiv, PubMed, GitHub
Notebook sources	Jupyter notebooks with optional outputs and tracebacks
Email sources	Outlook messages and email files
Cloud sources	Google Cloud Storage, AWS S3, Google Drive, SharePoint, OneDrive
Public-data sources	Open City Data and other supported public loaders

Each loader converts source-specific content into a consistent document contract used by the rest of the pipeline.

🧰 Loading Layer

The loading layer is implemented in loaders.py.

Its primary responsibility is to normalize heterogeneous inputs into LangChain Document objects. Each document carries page_content and metadata that identifies the loader, source, file name, parsing mode, or related extraction settings.

The loading layer supports both simple file ingestion and more complex workflows such as PDF extraction, XML parsing, notebook loading, cloud-object loading, and recursive web crawling.

🧹 Text Processing Layer

The processing layer is implemented in processors.py.

This layer transforms raw document text into cleaner, more consistent text for analysis and embedding. Processing operations include whitespace normalization, punctuation handling, symbol removal, HTML cleanup, Markdown cleanup, XML text extraction, stopword removal, header/footer cleanup, sentence splitting, tokenization, lemmatization, stemming, and related NLP preparation.

The processing layer is intentionally separated from the UI so parsing and cleanup logic can be documented, tested, and reused independently.

📊 Semantic Analysis Layer

The semantic analysis layer prepares text for measurement and downstream embedding.

Typical outputs include:

Output	Purpose
Chunks	Break long text into smaller windows for embedding and retrieval.
Vocabulary	Track unique terms and corpus shape.
Frequency distributions	Identify dominant terms and token patterns.
Corpus diagnostics	Support readability, density, and readiness analysis.

This layer gives users visibility into the document before vectors are generated.

🔢 Data Tokenization Layer

The tokenization layer provides diagnostics between text processing and embedding generation.

It supports sentence segmentation, token grids, token counts, and readiness metrics. These diagnostics help determine whether text is clean enough, sparse enough, or appropriately chunked for embedding workflows.

Token diagnostics are especially useful when source material comes from PDFs, OCR-like extraction, web pages, or highly formatted documents.

🧠 Embedding Layer

Chonky supports both hosted and local embedding workflows.

Provider Type	Module	Providers
Hosted embeddings	embedders.py	OpenAI, Gemini, Grok-compatible workflows
Local embeddings	loca.py	Booger, Nomnom, Bobo GGUF wrappers

The hosted embedding layer calls external provider APIs. The local embedding layer uses llama-cpp-python with GGUF embedding models. Both paths return vector lists that can be inspected, reduced for diagnostics, and persisted for search.

🗄 Vector Database Layer

The vector database layer stores embedding vectors and associated text chunks.

Chonky uses sqlite-vec for local vector persistence. This keeps the retrieval workflow lightweight and portable while still supporting similarity search over embedded document chunks.

The vector database layer connects embedding outputs to retrieval outputs.

🎯 Retrieval Outputs

The final stage returns retrieval-ready results.

These outputs can be used for:

Output	Use
Relevant chunks	Review the most semantically related document segments.
Semantic matches	Compare user queries against embedded content.
Reusable embedding data	Preserve vectorized chunks for later search or analysis.
RAG-ready context	Prepare retrieved text for downstream generative workflows.

⚙️ Cross-Cutting Modules

Two modules support the full workflow.

Module	Role
app.py	Coordinates the Streamlit interface, tab layout, session state, loader calls, processor calls, embedding workflow, and vector database workflow.
config.py	Centralizes paths, constants, provider settings, model options, logging paths, and session-state defaults.

These modules are not a single pipeline stage. They support orchestration, configuration, and application-level consistency across the entire system.

🧪 Architecture Validation

The architecture should be validated in three ways:

python -m compileall .
mkdocs build
python -m streamlit run app.py

A successful build confirms that the Python modules compile, the documentation can be generated by MkDocs, and the Streamlit workflow can still launch from the same source structure.

🧩 Design Principles

Chonky follows several practical design principles:

Principle	Description
Source-driven documentation	API pages are generated from Python docstrings using mkdocstrings.
Explicit workflow stages	Each major document-processing step is visible in the UI and documentation.
Modular source files	Loading, processing, embeddings, configuration, and UI orchestration are separated.
Local-first vector storage	sqlite-vec supports portable local vector persistence.
Provider flexibility	Hosted and local embedding providers share a common workflow role.
Inspection before embedding	Users can review text, tokens, chunks, and diagnostics before vector generation.

🧾 Summary

Chonky’s architecture is a modular document-intelligence pipeline. It begins with flexible document ingestion, moves through cleaning and analysis, produces embedding vectors, stores those vectors locally, and returns semantic retrieval outputs.

The design keeps the user interface, configuration, loaders, processors, hosted embeddings, and local embeddings clearly separated while preserving a single end-to-end workflow for document preparation, analysis, vectorization, and search.
