Overview

🧠 Features¶

Feature	Description
Document ingestion	Load text from local files, NLTK corpora, PDFs, Word documents, spreadsheets, notebooks, email files, web pages, public sources, cloud buckets, and connected document providers.
Geometry-aware PDF extraction	Use PyMuPDF-backed geometric extraction with header/footer band controls, page-break preservation, repeat removal, spacing repair, artifact cleanup, and hyphenation repair.
Text preprocessing	Remove HTML, Markdown, XML, symbols, numerals, numbers, punctuation, images, encoding artifacts, stopwords, fragments, misspellings, repeated delimiters, and excess whitespace.
NLTK processing	Run word tokenization, sentence tokenization, stemming, lemmatization, part-of-speech tagging, and named-entity recognition.
Corpus metrics	Display characters, token counts, vocabulary size, type-token ratio, hapax ratio, average token length, stopword ratio, lexical density, and readability scores.
Semantic analysis	Chunk processed text by characters or tokens, generate vocabulary and token-frequency distributions, and inspect top-token charts.
Token diagnostics	Render sentence chunks, fixed-width token grids, sparsity/padding diagnostics, sentence-length distributions, and embedding-readiness metrics.
Embedding providers	Generate embeddings through OpenAI and Gemini provider wrappers, with model, task, and dimensional controls.
Embedding diagnostics	Inspect generated embeddings with t-SNE and UMAP dimensionality-reduction diagnostics.
Vector persistence	Store embeddings in SQLite vector tables using sqlite-vec and LangChain-compatible vector store workflows.
Similarity retrieval	Run semantic similarity search with top-k controls and similarity-threshold filtering.
Cloud and connected sources	Load from Google Cloud files/buckets, AWS S3 files/buckets, OneDrive, SharePoint, GitHub, web crawlers, PubMed, and open-city datasets.

🧭 Application Tabs¶

The current Streamlit app is organized into the following tabs.

Tab	Purpose	Primary Inputs	Primary Outputs
Loading	Ingest documents from local, web, public, email, notebook, and cloud sources.	Uploaded files, URLs, repository metadata, corpus selectors, cloud identifiers, API keys.	`documents`, `raw_documents`, `raw_text`, active loader metadata, corpus metrics.
Text Processing	Clean, normalize, and transform the active raw text.	`raw_text`, active loader, cleanup checkboxes, NLTK options, PDF/Word/HTML-specific controls.	`processed_text`, `displayed_text`, processing statistics, token/NLP artifacts.
Semantic Analysis	Chunk processed text and compute vocabulary/frequency diagnostics.	`processed_text`, chunking mode, chunk size, overlap.	`chunked_documents`, tokens, vocabulary, frequency distribution.
Data Tokenization	Transform processed text into sentence/token structures and readiness diagnostics.	`processed_text`, token lists, sentence segmentation.	sentence rows, fixed-width token grids, top-token histograms, sparsity metrics.
Tensor Embeddings	Generate hosted embeddings and inspect reduced vector space.	Processed text or chunked documents, OpenAI/Gemini model controls.	embedding vectors, embedding dataframe, t-SNE/UMAP projections.
Vector Database	Persist embeddings in sqlite-vec and run semantic retrieval.	embedding vectors, embedding text, provider, model, document/collection name.	vector table, persisted chunks, similarity-search results.

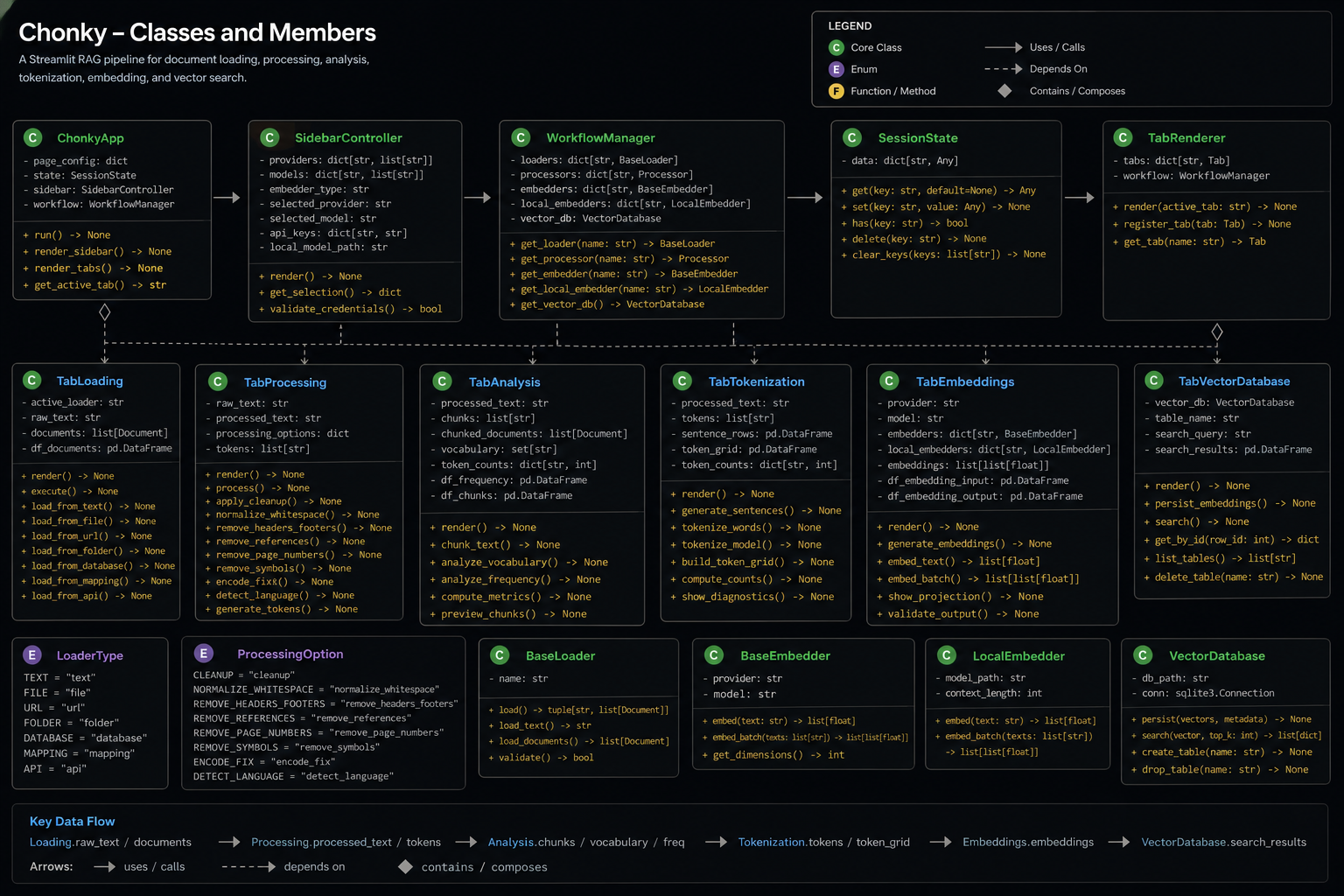

🏛 Architecture¶

Document Sources
    │
    ├── Local Files / Corpora / Email / Notebooks
    ├── Web / Wikipedia / ArXiv / GitHub / PubMed / Open City
    └── Cloud Files / Buckets / OneDrive / SharePoint
            │
            ▼
      Loading Tab
            │ raw_text + documents
            ▼
      Text Processing Tab
            │ processed_text
            ▼
      Semantic Analysis Tab
            │ chunks + vocabulary + frequencies
            ▼
      Data Tokenization Tab
            │ sentence rows + token grids + readiness diagnostics
            ▼
      Tensor Embeddings Tab
            │ embeddings + provider/model metadata
            ▼
      Vector Database Tab
            │ sqlite-vec tables + similarity search
            ▼
      Retrieval / RAG-Ready Outputs

🧰 Setup Instructions¶

⚡ Clone the Repository¶

git clone https://github.com/is-leeroy-jenkins/Chonky.git
cd Chonky
python -m venv .venv

▶️ Activate the Environment¶

Windows PowerShell¶

.\.venv\Scripts\Activate.ps1

Windows Command Prompt¶

.\.venv\Scripts\activate.bat

macOS / Linux¶

source .venv/bin/activate

📦 Install Requirements¶

python -m pip install --upgrade pip
python -m pip install -r requirements.txt

🚀 Run Chonky¶

python -m streamlit run app.py

🔑 API Key Setup¶

The sidebar exposes API key inputs for hosted embedding, cloud, and future vector-service workflows. Set only the providers you plan to use.

Key	Purpose	Used By
`OPENAI_API_KEY`	OpenAI hosted embeddings and related OpenAI workflows.	OpenAI Embeddings expander.
`GEMINI_API_KEY`	Google Gemini embedding workflows.	Gemini Embeddings expander.
`GROQ_API_KEY`	Groq/Grok-related provider workflows where enabled by the wrapper layer.	Provider configuration.
`GOOGLE_API_KEY`	Google API-backed loaders and services.	Google-connected loaders and services.
`GOOGLE_APPLICATION_CREDENTIALS`	Google service-account JSON path.	Google Cloud file and bucket loaders.
`PINECONE_API_KEY`	Reserved for future Pinecone vector-service workflows.	Future vector integrations.

Windows PowerShell Example¶

$env:OPENAI_API_KEY="your_openai_key"
$env:GEMINI_API_KEY="your_gemini_key"
$env:GROQ_API_KEY="your_groq_key"
$env:GOOGLE_API_KEY="your_google_key"

macOS / Linux Example¶

export OPENAI_API_KEY="your_openai_key"
export GEMINI_API_KEY="your_gemini_key"
export GROQ_API_KEY="your_groq_key"
export GOOGLE_API_KEY="your_google_key"

🧪 Example Usage¶

Basic Text Processing¶

from processors import TextParser

processor = TextParser( )
raw_text = "<p>This is an example document.</p>"
clean_text = processor.remove_html( raw_text )
clean_text = processor.normalize_text( clean_text )
clean_text = processor.collapse_whitespace( clean_text )
print( clean_text )

Chunk Text for Embedding¶

from nltk.tokenize import word_tokenize

text = "This is a processed document ready for semantic analysis."
tokens = word_tokenize( text )
chunks = [ " ".join( tokens[ index:index + 100 ] ) for index in range( 0, len( tokens ), 100 ) ]
print( chunks )

Similarity Retrieval with sqlite-vec¶

import sqlite3
import sqlite_vec
from langchain_community.embeddings.sentence_transformer import SentenceTransformerEmbeddings
from langchain_community.vectorstores import SQLiteVec

conn = sqlite3.connect( "vectors.db" )
conn.enable_load_extension( True )
sqlite_vec.load( conn )

embedding_fn = SentenceTransformerEmbeddings( model_name="all-MiniLM-L6-v2" )

vector_store = SQLiteVec(
    connection=conn,
    table_name="example__OpenAI__text-embedding-3-small__1536",
    embedding=embedding_fn,
)

results = vector_store.similarity_search( query="What is this document about?", k=5 )

for document in results:
    print( document.page_content )

📥 Document Loading¶

The Loading tab is organized into local, web, and cloud document groups. Each loader normalizes content into LangChain Document objects and updates the shared raw-text buffer for downstream processing.

Local Documents¶

Loader	Supported Input	Purpose
Corpora Loader	NLTK Brown, Gutenberg, Reuters, WebText, Inaugural, State of the Union, or local text directory.	Load reference corpora or local `.txt` files for NLP analysis.
Text Loader	`.txt`, `.text`, `.log`	Load plain text files.
CSV Loader	`.csv`	Load delimited records with delimiter and quote-character controls.
XML Loader	`.xml`	Load semantic XML, split XML documents, parse XML trees, and run XPath queries.
Word Document Loader	`.docx`	Extract Word document text and metadata.
PDF Loader	`.pdf`	Extract PDF text using geometry-aware PyMuPDF parsing or legacy loader mode.
PowerPoint Loader	`.pptx`	Extract slide text from PowerPoint files.
Jupyter Notebook Loader	`.ipynb`	Load notebook cells with optional outputs and traceback handling.
Excel Loader	`.xlsx`, `.xls`	Load spreadsheets into SQLite tables or unstructured document mode.
Markdown Loader	`.md`, `.markdown`	Load Markdown as a single document or parsed elements.
HTML Loader	`.html`, `.htm`	Load local HTML documents.
JSON Loader	`.json`, `.jsonl`	Load JSON using jq schema, optional content key, JSON Lines mode, and text/structured selection.

Web Documents¶

Loader	Input	Purpose
ArXiv Loader	Query text.	Retrieve arXiv documents with character-limit controls.
Wikipedia Loader	Query text.	Retrieve Wikipedia documents with max-document and max-character controls.
GitHub Loader	GitHub API URL, repository, branch, file-type filter, optional token.	Load repository files from GitHub.
Outlook Loader	`.msg`	Load Outlook message files.
Web Loader	One or more URLs.	Load web pages with timeout and continue-on-failure controls.
Web Crawler	Start URL.	Crawl web pages with depth, timeout, and same-domain controls.
Email Loader	`.eml`	Load email messages with single/elements mode and optional attachment processing.
PubMed Loader	PubMed query.	Retrieve PubMed search results.
Open City Loader	Socrata city domain, dataset ID, limit.	Load city open-data records.

Cloud Documents¶

Loader	Input	Purpose
OneDrive Loader	Drive ID and optional folder path.	Load OneDrive documents.
Google Cloud File Loader	Project name, bucket, blob.	Load a single Google Cloud Storage object.
AWS File Loader	Bucket, object key, region, SSL, verification, endpoint.	Load a single AWS S3 object.
Google Bucket Loader	Project name, bucket, prefix, continue-on-failure flag.	Load documents from a Google Cloud Storage bucket.
AWS Bucket Loader	Bucket, prefix, region, SSL, verification, endpoint.	Load documents from an AWS S3 bucket.
SharePoint Loader	Library ID and optional folder ID.	Load SharePoint library or folder documents.

🧼 Text Processing¶

Text Processing consumes raw_text and produces the authoritative processed_text used by downstream semantic analysis, tokenization, embeddings, and vector persistence.

Processing Group	Controls
General cleanup	Remove HTML, Markdown, XML, images, encoding artifacts, symbols, numbers, numerals, punctuation, repeated delimiters, stopwords, fragments, misspellings, and excess whitespace.
Normalization	Lowercase normalization and whitespace collapse.
NLTK processing	Word tokenization, sentence tokenization, stemming, lemmatization, part-of-speech tagging, and named-entity recognition.
Word processing	Extract tables and paragraphs when a Word document is active.
PDF processing	Remove repeated marginalia, clean parser artifacts, repair spacing, rejoin line-break hyphenation, and repair embedded hyphen splits.
HTML processing	Strip script/style content and route HTML-specific cleanup.
Output controls	Apply, reset, clear, and save processed text.

🔎 Semantic Analysis¶

Semantic Analysis requires processed text. It chunks text, computes lexical structures, and prepares intermediate outputs for diagnostics and embedding workflows.

Component	Description
Chunking mode	Supports character-based and token-based chunking.
Chunk controls	Chunk size and overlap.
Tokenization	Uses NLTK word tokenization over processed text.
Vocabulary	Builds a vocabulary through `TextParser`.
Frequency distribution	Creates and visualizes token-frequency distributions.
Output state	Stores chunked documents, tokens, vocabulary, and frequency data in session state.

🔤 Data Tokenization¶

The Data Tokenization tab turns processed text into row-based and grid-based diagnostic structures. It is intended to reveal whether text is ready for vectorization.

Output	Description
Chunked data	Sentence-like rows created from processed text.
Vector-space grid	Fixed-width token grid using dimensions `D0` through `D14`.
Token-frequency histogram	Top-N token frequency distribution.
Sentence-length distribution	Tokens-per-sentence chart.
Padding/sparsity analysis	Filled cell counts, empty cell counts, and padding percentage.
Embedding readiness scorecard	Total tokens, unique tokens, average tokens per sentence, and hapax ratio.

🧠 Tensor Embeddings¶

The Tensor Embeddings tab generates embeddings from either the full processed text or generated chunked documents.

Provider	Controls	Output
OpenAI Embeddings	Model selector using configured GPT embedding models.	Embedding dataframe with provider, model, row index, text, and embedding vector.
Gemini Embeddings	Model selector, task type, dimensions.	Embedding dataframe with provider, model, task, dimensions, row index, text, and embedding vector.

Embedding Diagnostics¶

Diagnostic	Purpose
t-SNE	Inspect local neighborhoods and embedding cluster behavior.
UMAP	Inspect broader manifold/global structure where `umap-learn` is installed.
Scatter plot	Visualize embedded chunks in two dimensions.
Reduced-coordinate table	Inspect dimensionality-reduction output numerically.

🗄️ Vector Database¶

The Vector Database tab persists generated embeddings to SQLite using sqlite-vec and LangChain's SQLiteVec vector store integration.

Operation	Description
Create Vector Table	Creates a vector table with dimensionality derived from the generated embedding array.
Insert Embeddings	Persists chunk text and embeddings into the vector table.
Drop Vector Table	Deletes the selected vector table.
Inspect Vector Table	Displays sample rows from the persisted vector table.

Vector tables are named deterministically using:

<document>__<provider>__<model>__<dimension>

This prevents accidental mixing of embeddings generated by different providers, models, or vector dimensions.

🔍 Similarity Search¶

Chonky includes an interactive sqlite-vec similarity search interface.

Control	Purpose
Query Text	Free-text semantic query.
Top-K Results	Number of nearest results to retrieve.
Minimum Similarity Threshold	Filters results below the selected similarity score.
Expandable results	Displays rank, similarity score, and chunk text.

📦 Requirements¶

The table below reflects the active imports and runtime features used by the current app.py. Use the repository requirements.txt as the installation source of truth when version pins are present.

Requirement	Package / Import	Purpose	Used By
Python	`python>=3.10`	Runtime for modern type hints and Streamlit execution.	Entire application.
Streamlit	`streamlit`	Web UI framework, tabs, expanders, metrics, data editors, uploaders, and session state.	All tabs.
Altair	`altair`	Declarative visualization support.	Chart-capable analytics workflows.
Pandas	`pandas`	Dataframes, previews, token tables, Excel loading, SQLite import/export, diagnostics.	Loading, Tokenization, Embeddings, Vector Database.
NumPy	`numpy`	Numeric arrays, embedding normalization, vector diagnostics.	Tensor Embeddings and vector search.
Pillow	`PIL` / `pillow`	Image handling where applicable.	Loader and UI support.
NLTK	`nltk`	Corpora, tokenization, stopwords, WordNet, words corpus, sentence segmentation.	Loading, Text Processing, Semantic Analysis, Tokenization.
TextStat	`textstat`	Optional readability metrics.	Corpus/comprehension metrics.
lxml	`lxml`	XML parsing, pretty-printing, XPath support.	XML Loader.
LangChain Core	`langchain-core`	`Document` abstraction used across loaders and internal document state.	Loading and processing pipeline.
LangChain Community	`langchain-community`	SentenceTransformerEmbeddings and SQLiteVec vector store integration.	Vector Database and similarity search.
Sentence Transformers	`sentence-transformers`	Sentence embedding models used through LangChain wrappers.	Vector Database / embedding functions.
sqlite-vec	`sqlite-vec`	SQLite vector extension for vector table creation and similarity search.	Vector Database.
SQLite	`sqlite3`	Local relational storage and vector table persistence.	Excel Loader and Vector Database.
Scikit-learn	`scikit-learn`	t-SNE dimensionality reduction and supporting ML utilities.	Embedding diagnostics.
UMAP Learn	`umap-learn`	UMAP dimensionality reduction.	Embedding diagnostics.
PyMuPDF	`pymupdf`	Geometry-aware PDF extraction through parser/loader internals.	PDF Loader and PDF Processing.
python-docx	`python-docx`	Word document parsing through loader/parser internals.	Word Loader and Word Processing.
python-pptx	`python-pptx`	PowerPoint text extraction.	PowerPoint Loader.
openpyxl	`openpyxl`	Excel workbook reading.	Excel Loader.
BeautifulSoup	`beautifulsoup4`	HTML parsing/cleanup through loaders and processors.	HTML Loader and Web Loader.
Requests / HTTPX	`requests`, `httpx`	HTTP transport for web and API-backed loaders.	Web, GitHub, arXiv, Wikipedia, PubMed, open-city loaders.
arxiv	`arxiv`	arXiv retrieval support.	ArXiv Loader.
Wikipedia / MediaWiki tooling	`wikipedia`, `mediawiki`, or loader-specific dependency	Wikipedia document retrieval.	Wikipedia Loader.
Boto3	`boto3`	AWS S3 object and bucket access.	AWS File Loader and AWS Bucket Loader.
Google Cloud Storage	`google-cloud-storage`	Google Cloud file and bucket loading.	Google Cloud File Loader and Google Bucket Loader.
Google Auth	`google-auth`	Google credential handling.	Google Cloud workflows.
Microsoft Graph / O365 tooling	provider-specific package	OneDrive, Outlook, and SharePoint document access where configured.	OneDrive, Outlook, SharePoint loaders.
nbformat	`nbformat`	Jupyter Notebook parsing.	Jupyter Notebook Loader.
unstructured	`unstructured`	Optional semantic document extraction.	XML, email, PDF, and mixed-document loader internals.
OpenAI SDK	`openai`	Hosted OpenAI embedding workflows.	OpenAI Embeddings.
Google GenAI	`google-genai`	Gemini embedding workflows.	Gemini Embeddings.
Groq SDK	`groq`	Groq/Grok provider wrapper support where enabled.	Provider configuration.
python-dotenv	`python-dotenv`	Optional local `.env` configuration.	Local setup.
Typing Extensions	`typing-extensions`	Compatibility for type hints on older Python environments.	General dependency support.

🙏 Acknowledgements¶

Streamlit
NLTK
LangChain
sqlite-vec
OpenAI
Google Gemini
Hugging Face sentence-transformers
The open-source Python NLP and machine-learning ecosystem
