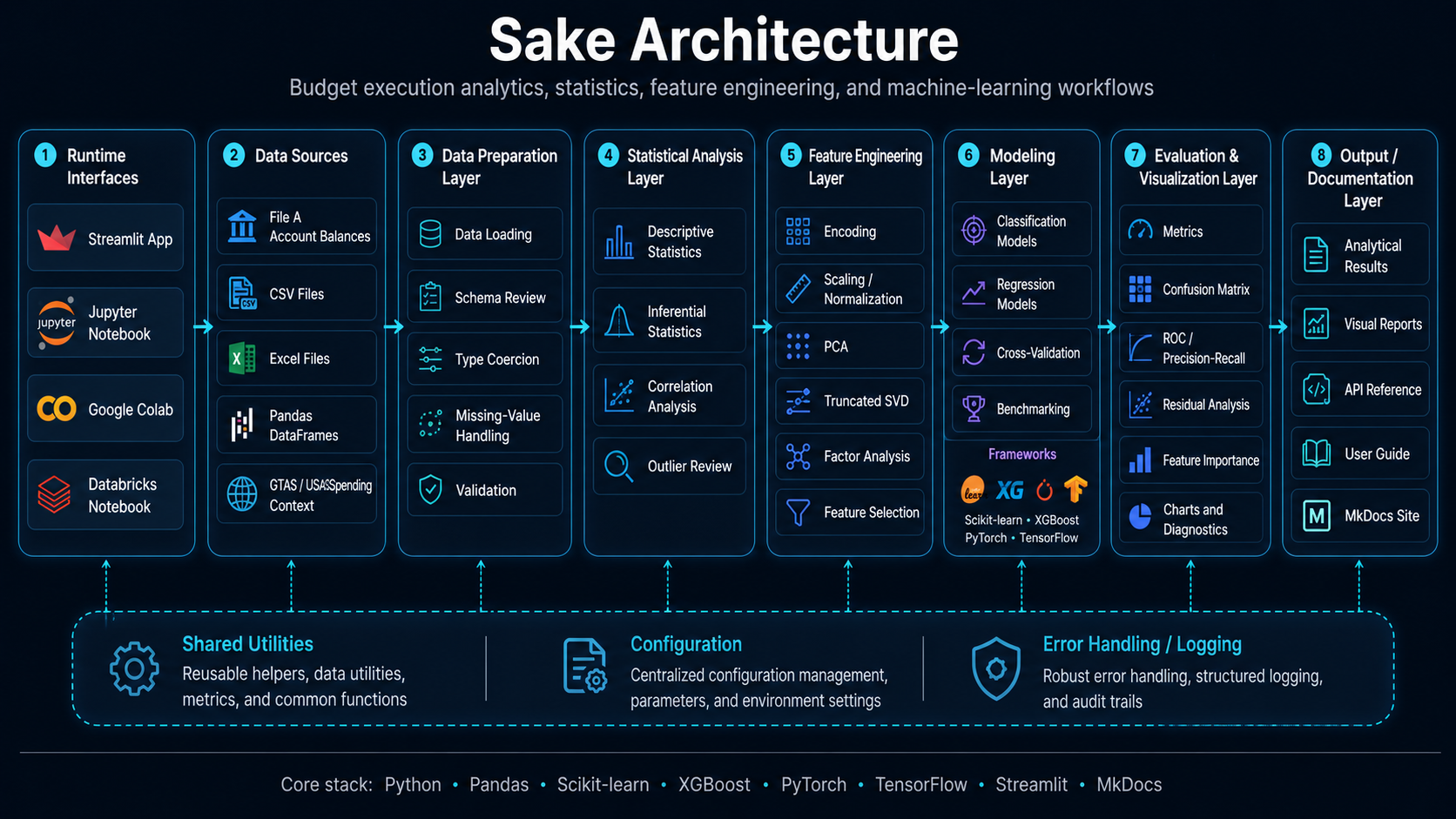

Sake organizes budget execution analytics into a repeatable workflow for data loading, statistical review, feature preparation, model training, evaluation, and visualization. The architecture separates user-facing interaction from analytical processing so that notebooks, Streamlit pages, and reusable Python modules can share the same core workflow.

🧭 Purpose

Define the application structure, workflow boundaries, module responsibilities, and documentation relationship for the Sake machine-learning and statistical-analysis framework.

🧱 Architectural Layers

Layer Responsibility Typical Outputs
User Interface Coordinates interactive workflows through Streamlit, notebooks, Colab, or Databricks. Uploaded files, selected workflow options, visible tables, charts, and metrics.
Data Layer Loads Account Balances, CSV, Excel, and DataFrame inputs. Validated DataFrames, schema summaries, column profiles, and type mappings.
Statistics Layer Performs descriptive and inferential analysis. Summary tables, correlations, hypothesis-test results, confidence intervals, and outlier indicators.
Feature Layer Converts raw fields into model-ready predictors. Encoded matrices, scaled features, reduced-dimension components, and selected feature sets.
Modeling Layer Trains and compares classification or regression models. Fitted estimators, predictions, cross-validation results, and candidate model summaries.
Evaluation Layer Calculates metrics and model diagnostics. Accuracy, precision, recall, F1, R², error measures, timing, residuals, and rankings.
Visualization Layer Renders charts for interpretation and validation. Distribution plots, heatmaps, confusion matrices, ROC curves, residual plots, and feature-importance charts.
Documentation Layer Publishes MkDocs pages and source-generated API references. User guide, API pages, development workflow, and dark-mode site assets.

🔄 Primary Workflow

Source Data
  -> Data Loading
  -> Data Validation
  -> Data Overview
  -> Descriptive Statistics
  -> Inferential Statistics
  -> Feature Engineering
  -> Classification or Regression
  -> Model Evaluation
  -> Visualization
  -> Documentation and Review

🏛️ Data Flow

Stage Input Processing Output
Ingestion File A Account Balances, CSV, Excel, or DataFrame Read data, normalize column access, preserve source metadata. Raw analytical DataFrame.
Validation Raw analytical DataFrame Inspect schema, missing values, numeric fields, duplicates, and categorical cardinality. Validated DataFrame and quality notes.
Profiling Validated DataFrame Calculate row counts, column summaries, distributions, and summary statistics. Data overview and descriptive statistics.
Inference Validated DataFrame and selected variables Run correlations, group comparisons, and statistical tests. Inferential results and interpretation support.
Transformation Validated DataFrame and feature selections Encode, scale, reduce dimensions, and isolate target variables. Model-ready feature and target arrays.
Training Features, target, and model options Fit classification or regression estimators. Fitted models and predictions.
Evaluation Predictions and true values Calculate metrics, diagnostics, timing, and rankings. Evaluation tables and diagnostic artifacts.
Visualization Data, metrics, predictions, and diagnostics Render charts and plots. Interpretable visual outputs.

🧩 Module Responsibility Model

Module Responsibility Design Boundary
app User interaction, upload controls, workflow routing, and rendered outputs. Should not contain reusable statistical or modeling logic that belongs in a lower layer.
data Loading, validation, coercion, schema review, and DataFrame preparation. Should not train models or render final UI components.
statistics Descriptive statistics, inferential statistics, correlations, and analytical summaries. Should not mutate the original source dataset unless explicitly documented.
features Feature preparation, encoding, scaling, dimensionality reduction, and target separation. Should prevent target leakage and preserve transformation metadata.
models Estimator creation, training, prediction, and model family coordination. Should return consistent structures for evaluation and comparison.
evaluation Metrics, diagnostics, timing, benchmarking, and model ranking. Should not retrain models.
visualization Plot construction and display-ready figure generation. Should separate figure construction from business decisions.
utilities Shared validation, formatting, configuration, and helper behavior. Should remain small, deterministic, and reusable.

🧪 Runtime Contexts

Runtime Role Notes
Streamlit Interactive application workflow. Best suited for upload, exploration, model selection, and visual review.
Jupyter / Colab Research and experimentation workflow. Best suited for iterative analysis, prototype notebooks, and exploratory review.
Databricks Scalable analytical workflow. Best suited for larger datasets and platform-based experimentation.
Local Python Development and validation workflow. Best suited for source edits, build checks, and documentation generation.

🔐 Validation Boundaries

Boundary Required Control
File input Confirm file type, readable structure, and supported worksheet or table layout.
Schema Verify required columns before statistics, features, or model training.
Numeric conversion Preserve original values where coercion creates missing or invalid numbers.
Feature preparation Prevent target leakage and preserve train/test separation.
Model training Confirm target availability, class balance, and compatible estimator inputs.
Evaluation Use task-appropriate metrics and consistent comparison rules.
Visualization Label charts clearly and avoid implying causality from exploratory plots.

🧾 Documentation Architecture

Sake documentation uses MkDocs, Material for MkDocs, mkdocstrings, Markdown topic pages, dark-mode CSS, and optional JavaScript enhancements.

Component Purpose
mkdocs.yml Defines site metadata, theme configuration, plugins, extensions, assets, and navigation.
docs/index.md Provides the main project landing page.
docs/architecture.md Defines the system architecture and workflow responsibilities.
docs/data-sources.md Documents Account Balances and related budget execution data concepts.
docs/model-evaluation.md Defines evaluation metrics, diagnostics, and benchmarking standards.
docs/user-guide/ Provides task-oriented operating guidance.
docs/api/ Provides source-driven API pages through mkdocstrings directives.
docs/development.md Defines setup, validation, build, and publishing workflow.
docs/assets/css/sake.css Applies dark-mode documentation styling.
docs/assets/js/sake.js Adds progressive documentation usability enhancements.

✅ Architecture Review Checklist

  • Data loading is separated from UI rendering.
  • Statistical routines do not depend on Streamlit state.
  • Feature preparation prevents target leakage.
  • Model training and evaluation use consistent inputs.
  • Evaluation metrics match classification or regression task type.
  • Visualization functions receive explicit data or result objects.
  • API documentation pages match importable Python modules.
  • MkDocs navigation includes every generated documentation page.
