Architecture

Mappy is a Python geospatial toolkit and Streamlit application for Google Maps workflows, location enrichment, route analysis, static map generation, external data retrieval, and generated-content workflows. The architecture is intentionally flat and service-oriented: each major capability lives in a standalone Python module that can be used directly from code or orchestrated through the Streamlit interface.

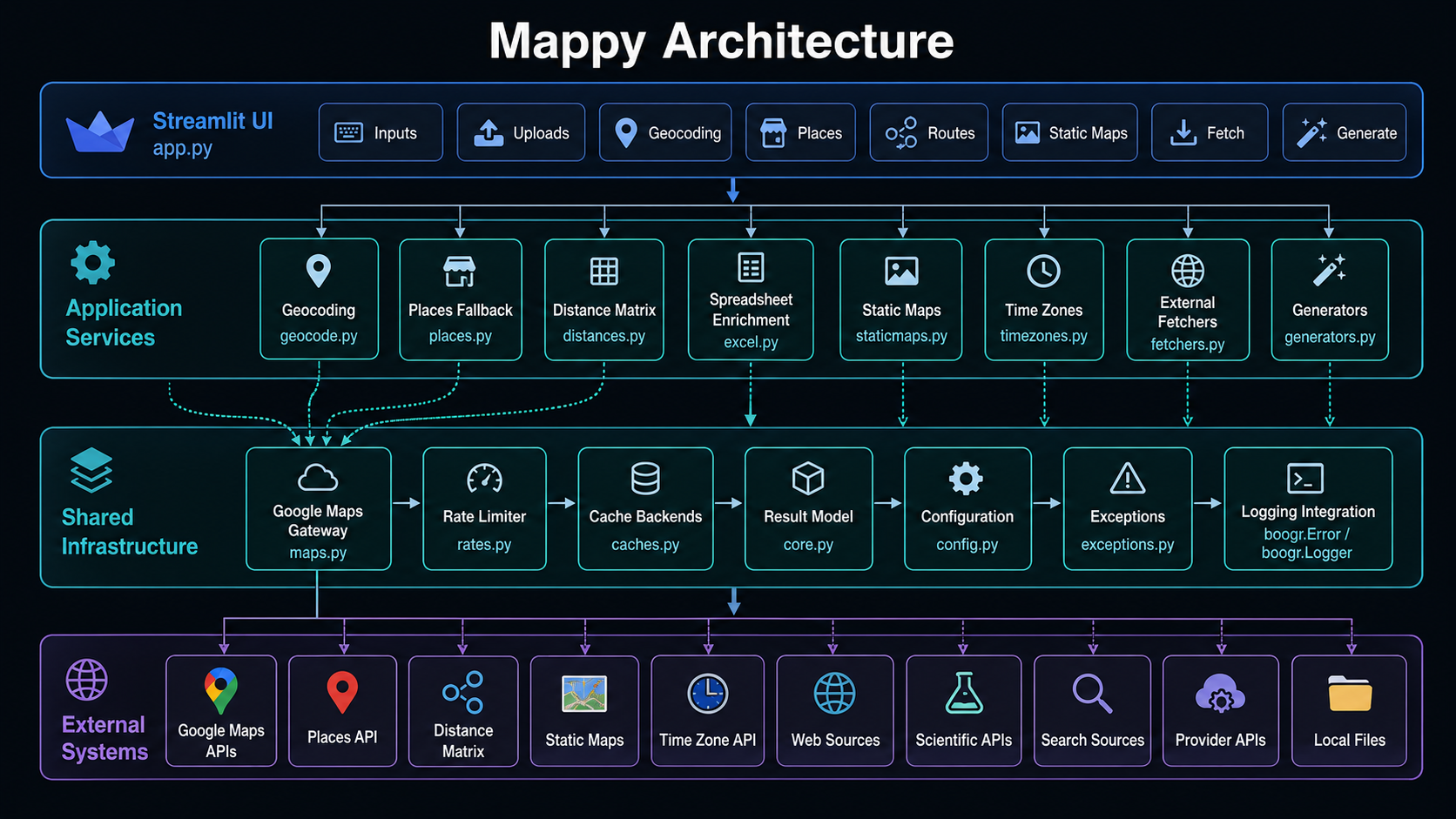

🧭 Architectural Overview¶

Mappy is organized around a reusable service layer with a Streamlit application on top. The application layer handles user interaction, while the service modules handle validation, external requests, normalization, caching, enrichment, and output generation.

+----------------------------------------------------------------------------------+
|                                  Streamlit UI                                     |
|                                    app.py                                         |
|----------------------------------------------------------------------------------|
|  Inputs | Uploads | Geocoding | Places | Routes | Static Maps | Fetch | Generate |
+---------------------------------------+------------------------------------------+
                                        |
                                        v
+----------------------------------------------------------------------------------+
|                              Application Services                                |
|----------------------------------------------------------------------------------|
|  Geocoding          Places Fallback       Distance Matrix      Spreadsheet        |
|  geocode.py         places.py             distances.py         excel.py           |
|                                                                                  |
|  Static Maps        Time Zones            External Fetchers    Generators         |
|  staticmaps.py      timezones.py          fetchers.py          generators.py      |
+---------------------------+----------------------+-------------------------------+
                            |                      |
                            v                      v
+----------------------------------------------------------------------------------+
|                              Shared Infrastructure                               |
|----------------------------------------------------------------------------------|
|  Google Maps Gateway      Rate Limiter        Cache Backends       Result Model   |
|  maps.py                  rates.py            caches.py            core.py        |
|                                                                                  |
|  Configuration            Exceptions          Logging Integration                 |
|  config.py                exceptions.py       boogr.Error / boogr.Logger          |
+---------------------------------------+------------------------------------------+
                                        |
                                        v
+----------------------------------------------------------------------------------+
|                              External Systems                                    |
|----------------------------------------------------------------------------------|
|  Google Maps APIs | Places API | Distance Matrix | Static Maps | Time Zone API    |
|  Web Sources      | Scientific APIs | Search Sources | Provider APIs | Local Files    |
+----------------------------------------------------------------------------------+

🧱 Design Principles¶

Mappy follows a few practical design principles.

Principle	Description
Flat source layout	Modules sit at the repository root so the app and documentation can import them directly.
Thin UI layer	`app.py` should orchestrate workflows, not bury service logic inside Streamlit callbacks.
Reusable services	Geocoding, Places, Distance Matrix, Static Maps, Time Zone, Excel enrichment, fetchers, and generators can be used independently.
Canonical output shapes	Service wrappers normalize external payloads into predictable dictionaries, lists, dataframes, or URLs.
Cache-aware workflows	Repeated lookups can use in-memory or SQLite cache backends.
Documentation-ready source	Public classes, functions, and methods use Google-style docstrings for MkDocs and mkdocstrings.
Stable exception logging	Wrapped exceptions record module, cause, method, message, and traceback without logging sensitive runtime values.

🗂️ Repository Layout¶

Mappy uses a flat application layout with documentation under docs/.

Mappy/
  app.py
  caches.py
  config.py
  core.py
  distances.py
  excel.py
  exceptions.py
  fetchers.py
  generators.py
  geocode.py
  maps.py
  places.py
  rates.py
  staticmaps.py
  timezones.py
  requirements.txt
  README.md
  mkdocs.yml
  docs/
    index.md
    architecture.md
    user-guide.md
    development.md
    github-pages.md
    api/
      index.md
      app.md
      caches.md
      config.md
      core.md
      distances.md
      excel.md
      exceptions.md
      fetchers.md
      generators.md
      geocode.md
      maps.md
      places.md
      rates.md
      staticmaps.md
      timezones.md
    assets/
      css/
        extra.css
      js/
        extra.js

🖥️ Application Layer¶

The application layer is implemented in app.py.

app.py provides the Streamlit interface for interactive workflows. It should remain focused on page layout, controls, state management, service orchestration, and display logic.

Primary responsibilities include:

Responsibility	Description
Page configuration	Configures the Streamlit page, title, icons, and layout.
Sidebar controls	Collects mode selections, configuration values, and workflow options.
Input capture	Accepts addresses, coordinates, files, prompts, provider options, and user settings.
Service orchestration	Calls geocoding, Places, distance, static map, time-zone, fetcher, and generator modules.
Result rendering	Displays dictionaries, tables, dataframes, maps, generated text, URLs, and status summaries.
Session state	Maintains state across Streamlit reruns without moving business logic into the UI.

The UI layer depends on the service layer. The service layer should not depend on Streamlit.

app.py
  |
  +-- geocode.py
  +-- places.py
  +-- distances.py
  +-- staticmaps.py
  +-- timezones.py
  +-- excel.py
  +-- fetchers.py
  +-- generators.py

🗺️ Google Maps Gateway Layer¶

The Google Maps gateway is implemented in maps.py.

The Maps class centralizes outbound Google Maps Web Services requests. Instead of having every service wrapper construct its own HTTP logic, service classes call Maps.request(...).

Service Wrapper
      |
      v
Maps.request(endpoint, params)
      |
      +-- validate endpoint and parameter inputs
      +-- apply request rate limiting
      +-- inject configured Google Maps API key
      +-- issue HTTP GET request
      +-- record diagnostics
      +-- retry transient failures
      +-- raise gateway errors for hard failures
      |
      v
Parsed JSON payload

The gateway layer supports these service wrappers:

Wrapper	Module	Google API Family
`Geocoder`	`geocode.py`	Geocoding API
`Place`	`places.py`	Places Text Search and Place Details
`DistanceMatrix`	`distances.py`	Distance Matrix API
`Timezone`	`timezones.py`	Time Zone API

📍 Geocoding Layer¶

The geocoding layer is implemented in geocode.py.

The Geocoder class resolves free-form addresses, reverse-geocodes coordinates, resolves structured city/state/country values, and supports batch geocoding.

Component	Purpose
`flatten_geocode(...)`	Converts raw Google Geocoding results into Mappy’s canonical output shape.
`Geocoder.freeform(...)`	Resolves one free-form address.
`Geocoder.reverse(...)`	Resolves one coordinate pair into an address.
`Geocoder.city_state_country(...)`	Resolves structured locality fields.
`Geocoder.batch_freeform(...)`	Processes multiple addresses with row-level status handling.

Typical output fields include:

Field	Description
`formatted_address`	Canonical formatted address.
`lat`	Latitude.
`lng`	Longitude.
`place_id`	Google place identifier.
`types`	Google result types.
`country_code`	Short country code.
`country_name`	Full country name.
`admin_level_1`	State, province, region, or equivalent.
`admin_level_2`	County or secondary administrative area.
`locality`	City or locality.
`postal_code`	Postal code.
`source`	Workflow source, such as `geocode` or `reverse_geocode`.
`query`	Original query value.

🏢 Places Layer¶

The Places layer is implemented in places.py.

The Place class provides a fallback and enrichment path for named locations, businesses, landmarks, institutions, and ambiguous user queries. It uses Places Text Search to find candidates and Place Details to retrieve structured metadata.

Component	Purpose
`Place.text_to_location(...)`	Resolves free text into a canonical location record.
`Place.place_details(...)`	Resolves a known `place_id` into detailed metadata.
`Place.search_candidates(...)`	Returns candidate Places results for review or disambiguation.
`Place.flatten_place_details(...)`	Converts Place Details into Mappy’s canonical output shape.
`Place.component_value(...)`	Extracts address components from Google payloads.

Places output intentionally overlaps with geocoding output. It also includes additional fields such as:

Field	Description
`name`	Place name.
`business_status`	Google business status when available.
`rating`	Google rating when available.
`user_ratings_total`	Number of user ratings when available.
`website`	Place website when available.
`formatted_phone_number`	Place phone number when available.

🛣️ Distance Matrix Layer¶

The distance layer is implemented in distances.py.

The DistanceMatrix class wraps route-distance and duration workflows.

Component	Purpose
`DistanceMatrix.matrix(...)`	Executes one-to-many or many-to-many distance requests.
`DistanceMatrix.summary(...)`	Returns a compact one-route summary.
`DistanceMatrix.compare_modes(...)`	Compares travel modes for the same route.
`DistanceMatrix.to_dataframe(...)`	Converts route rows into a pandas DataFrame.
`DistanceMatrix.normalize_mode(...)`	Validates travel mode values.
`DistanceMatrix.normalize_inputs(...)`	Normalizes address and coordinate inputs.
`DistanceMatrix.flatten_element(...)`	Converts one Google response element into a row.

Supported modes are:

Mode	Description
`driving`	Driving distance and duration.
`walking`	Walking distance and duration.
`bicycling`	Bicycling distance and duration.
`transit`	Transit distance and duration when available.

🖼️ Static Maps Layer¶

The static map layer is implemented in staticmaps.py.

The StaticMap class builds Google Static Maps URLs. It does not download images directly. It returns URLs that can be displayed in Streamlit, used in documentation, opened in a browser, or embedded in reports.

Component	Purpose
`StaticMap.pin(...)`	Builds a single-marker map URL.
`StaticMap.pins(...)`	Builds a multi-marker map URL.
`StaticMap.path(...)`	Builds a map URL with a visible path.
`StaticMap.bbox(...)`	Builds a map URL with a bounding box outline.
`StaticMap.build_url(...)`	Assembles the final Google Static Maps URL.
`StaticMap.normalize_points(...)`	Converts supported point shapes into coordinate tuples.
`StaticMap.validate_coordinate(...)`	Validates latitude and longitude ranges.

🕒 Time Zone Layer¶

The time-zone layer is implemented in timezones.py.

The Timezone class wraps the Google Time Zone API.

Component	Purpose
`Timezone.lookup(...)`	Retrieves the full Google Time Zone API payload.
`Timezone.get_id(...)`	Extracts the IANA time-zone identifier.
`Timezone.offset_hours(...)`	Calculates total UTC offset in hours.
`Timezone.local_time(...)`	Converts UTC time into local time for a coordinate.
`Timezone.batch_lookup(...)`	Enriches row dictionaries with time-zone fields.
`Timezone.validate_coordinates(...)`	Validates latitude and longitude ranges.

📊 Spreadsheet Enrichment Layer¶

The spreadsheet layer is implemented in excel.py.

The Excel class reads CSV/XLSX files, resolves location data, appends canonical geospatial output columns, summarizes enrichment results, and writes enriched files.

CSV/XLSX Input
      |
      v
Excel.read(...)
      |
      v
Row iteration
      |
      +-- Geocoder.freeform(...)
      |       |
      |       +-- fallback to Place.text_to_location(...)
      |
      +-- Geocoder.city_state_country(...)
              |
              +-- fallback to Place.text_to_location(...)
      |
      v
Canonical enrichment columns
      |
      v
Excel.write(...)
      |
      v
CSV/XLSX Output

The enrichment layer preserves row alignment. Every input row receives output values, even when the row is skipped, not found, or fails with an error.

Common row-level status values include:

Status	Meaning
`ok`	Resolved through geocoding.
`ok_places`	Resolved through Places fallback.
`not_found`	No usable result was found.
`skipped_empty`	The source row did not contain usable location input.
`error`	A row-level error occurred.

🧠 Cache Layer¶

The cache layer is implemented in caches.py.

Caching reduces duplicate lookups and allows repeated workflows to reuse previous results.

Class	Storage	Purpose
`BaseCache`	Interface	Defines the common cache contract.
`InMemoryCache`	Python dictionary	Provides fast process-local caching.
`SQLiteCache`	SQLite database	Provides durable local caching across application runs.

Cache implementations support:

Method	Purpose
`get(...)`	Read a cached dictionary payload.
`set(...)`	Store a cached dictionary payload.
`delete(...)`	Remove one cached key.
`clear(...)`	Clear all records or a namespace.
`contains(...)`	Check whether a usable cached value exists.
`stats(...)`	Return backend diagnostics.

⏱️ Rate Limiting Layer¶

The rate-limiting layer is implemented in rates.py.

The RateLimiter class enforces a minimum interval between requests. The Maps gateway calls it before outbound API requests.

Maps.request(...)
      |
      v
RateLimiter.wait()
      |
      +-- count request
      +-- compare elapsed time with configured interval
      +-- sleep when necessary
      +-- update diagnostics

📦 Core Model Layer¶

The core layer is implemented in core.py.

The Result class wraps an HTTP response into a lightweight result object.

Field	Description
`url`	Response URL.
`status_code`	HTTP response status code.
`text`	Response text body.
`encoding`	Response encoding.
`headers`	Response headers.
`response`	Original `requests.Response` object.

🌐 Fetcher Layer¶

The fetcher layer is implemented in fetchers.py.

Fetchers isolate retrieval logic for web pages, documents, search results, scientific sources, environmental sources, geospatial services, and other external data sources.

User or App Request
      |
      v
Fetcher Class
      |
      +-- validate inputs
      +-- call external source
      +-- parse or normalize result
      +-- return text, data, document, table, image, or result object

The architectural role of fetchers.py is to keep external retrieval logic out of the Streamlit UI and out of generator classes.

✍️ Generator Layer¶

The generator layer is implemented in generators.py.

Generators transform prompts, retrieved context, user inputs, files, or structured data into generated responses or structured outputs.

Prompt / Context / Data
      |
      v
Generator Class
      |
      +-- validate inputs
      +-- prepare provider payload
      +-- call provider or local model
      +-- normalize output
      |
      v
Generated response or structured result

The architectural role of generators.py is to keep provider-specific generation logic separate from the UI and retrieval layers.

⚠️ Exception Layer¶

Project-specific exceptions are defined in exceptions.py.

Exception	Purpose
`MappyError`	Base exception for known Mappy errors.
`GatewayError`	External gateway, API, response, retry, or transport failure.
`NotFound`	Lookup completed without producing a usable result.

Operational modules that wrap errors use the project logging pattern:

boogr.Error
boogr.Logger

The logging pattern records stable diagnostic metadata, such as module, cause, method, message, and traceback. Runtime-sensitive values should not be written to logs.

Do not log:

Sensitive Value	Reason
API keys	Secret credential.
Raw payloads	May contain user input or provider data.
Full API responses	May contain user or service data.
Addresses	User-provided location data.
Coordinates	User-provided location data.
File contents	Uploaded data may be sensitive.
DataFrame rows	Uploaded spreadsheet rows may contain sensitive data.
Cache keys	Cache keys may include normalized user input.

🔐 Configuration Layer¶

Configuration is centralized in config.py.

Typical configuration responsibilities include:

Area	Purpose
Paths	Root, log, database, image, and documentation paths.
API keys	External provider keys read from environment variables.
App labels	Application title, subtitle, and UI constants.
Helper functions	Typed environment-variable readers and validation helpers.

The configuration layer should not perform external network work. It should remain safe to import.

🔄 Primary Data Flow¶

Most workflows follow the same pattern.

User Input
   |
   v
Streamlit UI or Python Caller
   |
   v
Service Wrapper
   |
   +-- validate inputs
   +-- check cache when configured
   +-- call gateway, fetcher, or provider
   +-- normalize result
   +-- write cache when configured
   |
   v
Dictionary / DataFrame / URL / Generated Output
   |
   v
Display, export, documentation, or downstream use

🧩 Extension Points¶

Mappy is designed so additional workflows can be added without rewriting the whole application.

Extension	Where to Add It
New Google Maps service	Add a service wrapper that uses `Maps.request(...)`.
New external data source	Add a fetcher class in `fetchers.py`.
New generation provider	Add a generator class in `generators.py`.
New enrichment column	Extend `Excel.create_outputs(...)`, `append_empty(...)`, and `append_result(...)`.
New cache backend	Implement the `BaseCache` interface.
New Streamlit workflow	Add UI orchestration in `app.py` that calls an existing service class.
New API documentation page	Add `docs/api/<module>.md` with a mkdocstrings directive.

📚 Documentation Integration¶

Mappy documentation is built with MkDocs, Material for MkDocs, and mkdocstrings.

Source modules are documented with Google-style docstrings. API pages under docs/api/ should use mkdocstrings directives such as:

# Geocoding API

::: geocode

The documentation system depends on:

File	Purpose
`mkdocs.yml`	Site configuration, navigation, theme, and plugin settings.
`docs/index.md`	Documentation landing page.
`docs/architecture.md`	Architecture explanation.
`docs/user-guide.md`	Usage guide and examples.
`docs/development.md`	Contributor and validation guide.
`docs/api/*.md`	API reference pages generated from source docstrings.
`docs/assets/css/extra.css`	Documentation styling overrides.
`docs/assets/js/extra.js`	Small documentation UI enhancements.

✅ Architecture Summary¶

Mappy’s architecture is organized around clear separation of responsibilities:

Layer	Main Files	Responsibility
UI	`app.py`	User interaction and workflow orchestration.
Service wrappers	`geocode.py`, `places.py`, `distances.py`, `staticmaps.py`, `timezones.py`, `excel.py`	Domain workflows and normalized outputs.
Gateway	`maps.py`	Shared Google Maps request execution.
Infrastructure	`caches.py`, `rates.py`, `core.py`, `config.py`, `exceptions.py`	Caching, rate limiting, configuration, models, and errors.
Retrieval	`fetchers.py`	External data retrieval.
Generation	`generators.py`	Generated content and provider workflows.
Documentation	`docs/`, `mkdocs.yml`	MkDocs site and API reference.
