Architecture

Buddy is a Streamlit-based, multi-provider AI analysis platform that coordinates user interaction, provider-specific model calls, local storage, document workflows, semantic retrieval, prompt management, and exportable analytical outputs.

The architecture separates the Streamlit user interface from provider wrappers so each model ecosystem can expose its own capabilities without forcing the application into a single provider-specific design.

🧭 Purpose¶

This page explains how Buddy is organized, how the major modules interact, and where the core workflows fit within the application.

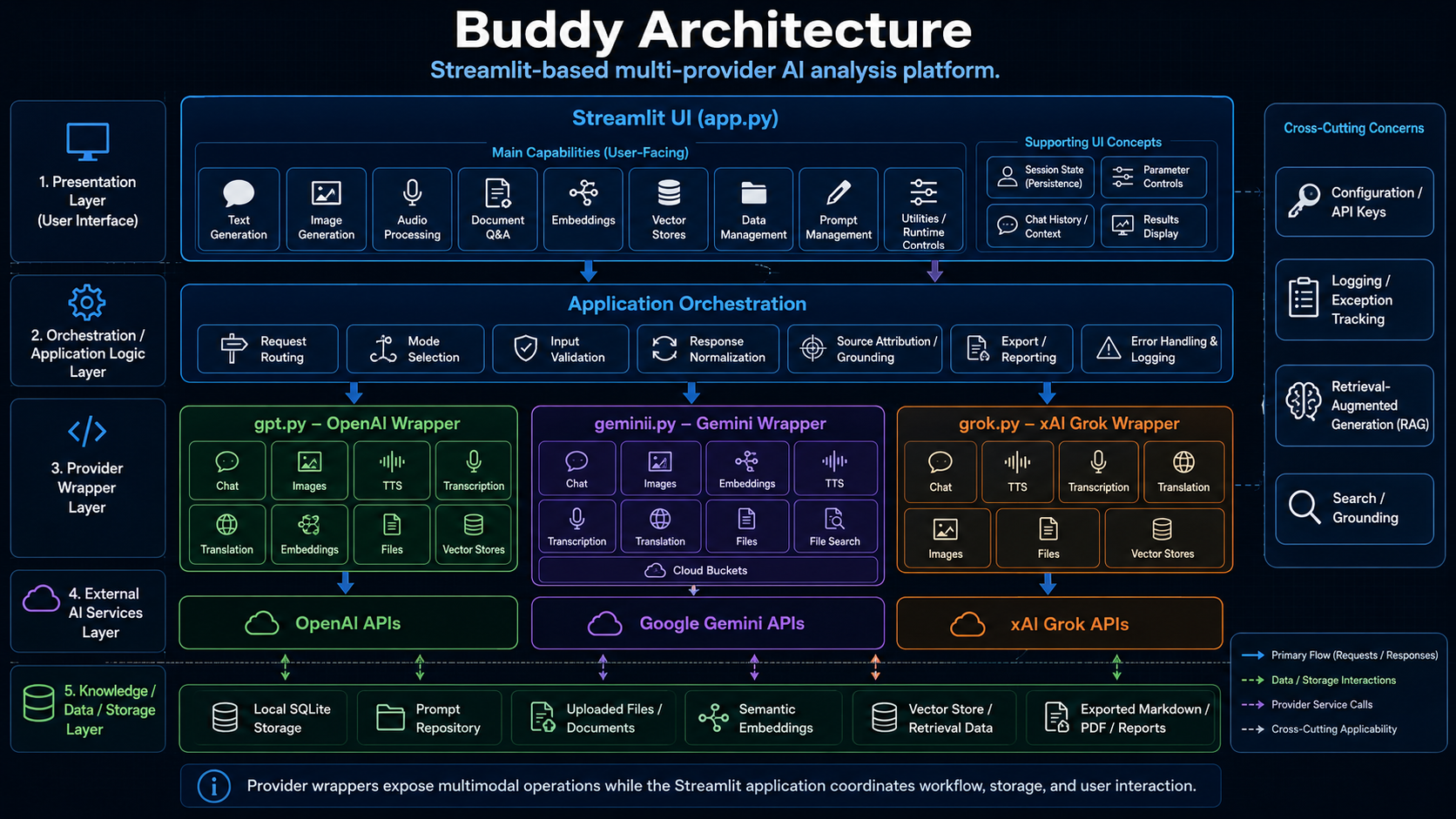

Buddy is built around five architectural layers:

Presentation Layer
Application Orchestration Layer
Provider Wrapper Layer
External AI Services Layer
Knowledge, Data, and Storage Layer

This structure keeps the application usable for analysts while preserving a maintainable technical boundary between UI state, request construction, provider-specific APIs, local storage, and retrieval workflows.

🧱 Architecture Summary¶

Layer	Primary Responsibility
Presentation Layer	Provides the Streamlit interface, mode selectors, parameter controls, upload controls, result displays, and export actions.
Application Orchestration Layer	Routes user actions, validates inputs, normalizes provider requests, processes responses, extracts sources, and coordinates mode-specific workflows.
Provider Wrapper Layer	Encapsulates GPT, Gemini, and Grok provider logic behind Python wrapper classes.
External AI Services Layer	Connects provider wrappers to external model, file, image, audio, embedding, and retrieval APIs.
Knowledge / Data / Storage Layer	Stores prompts, chat history, uploaded content, embeddings, SQLite tables, vector-store references, and exported artifacts.

🖥️ Presentation Layer¶

The presentation layer is implemented primarily in app.py. It provides the Streamlit user interface and exposes Buddy’s user-facing workflows.

Main User-Facing Capabilities¶

Capability	Description
Text Generation	Sends structured prompts to selected provider models.
Image Generation	Generates, edits, or analyzes images where supported by the selected provider.
Audio Processing	Supports speech generation, transcription, and translation workflows.
Document Q&A	Processes uploaded documents and supports grounded question answering.
Embeddings	Creates vector representations of text for semantic comparison and retrieval.
Vector Stores	Manages retrieval-oriented collections or provider-backed vector stores.
Data Management	Provides SQLite-backed table inspection, profiling, filtering, visualization, and transformation support.
Prompt Management	Stores, edits, loads, versions, and converts reusable prompt templates and system instructions.
Utilities / Runtime Controls	Provides runtime configuration, reset actions, state inspection, and supporting controls.

Supporting UI Concepts¶

Buddy depends on Streamlit session state to preserve the working context across reruns.

Concept	Role
Session State	Preserves selected provider, selected mode, uploaded files, model parameters, prompt settings, results, and workflow-specific data.
Parameter Controls	Exposes provider-specific values such as model, temperature, reasoning, tools, response format, file purpose, and output options.
Chat History / Context	Maintains conversational state and supports reuse of previous messages where enabled.
Results Display	Presents model output, tables, extracted text, sources, artifacts, and export controls.

⚙️ Application Orchestration Layer¶

The orchestration layer coordinates the workflow between the user interface, provider wrappers, local utilities, and storage resources.

Component	Responsibility
Request Routing	Directs user actions to the correct provider wrapper or local workflow.
Mode Selection	Maps selected UI modes to the correct provider methods and state keys.
Input Validation	Ensures required prompts, files, model names, table names, and identifiers are present before execution.
Response Normalization	Converts provider responses into displayable text, tables, sources, files, or structured metadata.
Source Attribution / Grounding	Extracts source references from provider responses or local retrieval workflows when available.
Export / Reporting	Produces Markdown, PDF, text, or downloadable analytical artifacts.
Error Handling & Logging	Wraps exceptions with application metadata and records them through the project logging pattern.

The orchestration layer is intentionally provider-neutral. Provider-specific request details belong in the wrapper modules, while app.py coordinates user intent and display behavior.

🧩 Provider Wrapper Layer¶

Buddy uses three primary provider wrapper modules:

Module	Provider	Role
`gpt.py`	OpenAI	Provides OpenAI chat, image, audio, embedding, file, and vector-store workflows.
`gemini.py`	Google Gemini	Provides Gemini chat, image, embedding, audio, file, file-search, grounding, and cloud-bucket workflows.
`grok.py`	xAI Grok	Provides Grok chat, image, audio, file, and collection-style retrieval workflows.

This boundary is important because each provider exposes different model names, request formats, response structures, tool options, and file or retrieval concepts.

GPT API¶

The gpt.py module provides OpenAI-oriented wrapper classes.

Class	Responsibility
`GPT`	Base OpenAI configuration and shared runtime attributes.
`Chat`	Responses API text generation, reasoning, tools, file search, and source extraction.
`Images`	Image generation, image analysis, and image editing workflows.
`TTS`	Text-to-speech generation.
`Transcription`	Speech-to-text transcription.
`Translation`	Audio translation.
`Embeddings`	Embedding creation, dimension validation, and token-limit support.
`Files`	File upload, retrieval, extraction, deletion, summarization, search, and survey workflows.
`VectorStores`	Vector-store creation, file attachment, search, retrieval, batch handling, and answer generation.

Gemini API¶

The gemini.py module provides Google Gemini-oriented wrapper classes.

Class	Responsibility
`Gemini`	Base Gemini configuration and shared runtime attributes.
`Chat`	Text generation, Google Search grounding, URL context, tools, safety settings, and structured conversation handling.
`Images`	Image generation, analysis, editing, and multimodal output handling.
`Embeddings`	Embedding creation and embedding response extraction.
`TTS`	Speech generation workflows.
`Transcription`	Audio transcription workflows.
`Translation`	Audio translation workflows.
`Files`	File upload, retrieval, extraction, deletion, summarization, and search.
`FileSearch`	File-search store creation, listing, retrieval, deletion, upload, and import workflows.
`CloudBuckets`	Cloud bucket object upload, retrieval, listing, deletion, web search, and maps search support.

Grok API¶

The grok.py module provides xAI Grok-oriented wrapper classes.

Class	Responsibility
`Grok`	Base xAI configuration and shared runtime attributes.
`Chat`	Text generation, tools, reasoning, grounding sources, and document answering.
`TTS`	Text-to-speech generation, output formatting, sample-rate validation, and audio extraction.
`Transcription`	Audio transcription request construction and transcript extraction.
`Translation`	Audio translation request construction and translation extraction.
`Images`	Image generation, creation, editing, analysis, vision, and description workflows.
`Files`	File upload, listing, retrieval, extraction, download, deletion, summarization, and survey workflows.
`VectorStores`	Collection lookup, retrieval, search, survey, update, and delete workflows.

🔌 External AI Services Layer¶

The external services layer represents provider-hosted APIs. Buddy does not merge these APIs into a single internal abstraction. Instead, it keeps provider-specific behavior inside dedicated modules and exposes a consistent application experience through the Streamlit interface.

External Service	Connected Module	Typical Workflows
OpenAI APIs	`gpt.py`	Chat, image generation, speech, transcription, translation, embeddings, files, vector stores.
Google Gemini APIs	`gemini.py`	Chat, multimodal generation, image workflows, embeddings, file search, cloud storage, grounding.
xAI Grok APIs	`grok.py`	Chat, image workflows, audio workflows, file workflows, collection-style retrieval.

🗄️ Knowledge, Data, and Storage Layer¶

Buddy uses local and provider-backed storage patterns to support repeatable analysis.

Storage Resource	Use
Local SQLite Storage	Stores prompts, chat history, embeddings, data-management tables, and local application records.
Prompt Repository	Stores reusable prompt captions, names, text, versions, and identifiers.
Uploaded Files / Documents	Provides source material for extraction, summarization, Q&A, and retrieval workflows.
Semantic Embeddings	Supports similarity scoring and retrieval over text chunks.
Vector Store / Retrieval Data	Supports provider-backed or local retrieval workflows.
Exported Markdown / PDF / Reports	Stores generated outputs suitable for review, documentation, and distribution.

🔎 Retrieval-Augmented Generation¶

Buddy supports retrieval-augmented generation through both local and provider-backed mechanisms.

Local Retrieval Pattern¶

Upload or load source material.
Extract text.
Normalize and chunk the text.
Generate embeddings.
Score text chunks against the user prompt.
Inject relevant context into the prompt.
Display answer text and related source material.

Provider Retrieval Pattern¶

Upload or reference provider-managed files.
Attach files to vector stores, file-search stores, or collections.
Submit a question with provider-specific retrieval tools enabled.
Extract answer text and source references from the provider response.
Display sources for review.

🧠 Prompt Management¶

Prompt management is a core architectural feature because Buddy is designed for controlled analytical workflows.

The prompt repository supports:

Reusable system instructions.
Prompt captions and names.
Prompt text storage.
Prompt version tracking.
Markdown-to-XML and XML-to-Markdown conversion.
Loading prompts into provider calls.

This allows users to standardize analytical behavior across sessions and providers.

📊 Data Management¶

Buddy includes a SQLite-backed data-management workflow. This enables analysts to work with tabular data without leaving the application.

Core data-management capabilities include:

Capability	Description
Table Listing	Displays available SQLite tables.
Schema Inspection	Reads table structure and column metadata.
Table Reading	Loads table data into pandas DataFrames.
Filtering	Applies user-selected filters to tabular data.
Aggregation	Computes simple aggregate metrics from numeric fields.
Visualization	Produces charts for exploratory review.
Table Creation	Creates SQLite tables from user-defined schemas or DataFrames.
Indexing	Creates indexes on validated table and column names.
Profiling	Summarizes null rates, distinct rates, and numeric ranges.

🚨 Error Handling and Logging¶

Buddy uses a structured exception pattern to make failures easier to diagnose.

Provider wrappers and critical workflows wrap exceptions with metadata such as:

Module name.
Class or functional cause.
Method signature.
Original exception details.

The logging pattern records the wrapped exception while preserving a stable method signature. Runtime values such as prompts, API keys, file contents, tokens, and dataframe contents should not be written into the method signature string.

🔐 Configuration and API Keys¶

Configuration is handled outside the main provider logic. API keys and provider settings should be loaded from configuration or environment variables.

Common configuration values include:

Setting	Purpose
`OPENAI_API_KEY`	Enables OpenAI provider workflows.
`GOOGLE_API_KEY`	Enables Google Gemini workflows.
`GEMINI_API_KEY`	Enables Gemini-specific workflows where separately configured.
`XAI_API_KEY`	Enables xAI Grok workflows.
`GOOGLE_CSE_ID`	Enables search workflows where configured.
`GOOGLEMAPS_API_KEY`	Enables maps-related workflows where configured.
`GEOCODING_API_KEY`	Enables geocoding workflows where configured.

🔁 Request Flow¶

A typical Buddy request follows this path:

User Action
    ↓
Streamlit UI
    ↓
Session State + Parameter Collection
    ↓
Application Orchestration
    ↓
Provider Wrapper or Local Workflow
    ↓
External API or Local Storage
    ↓
Normalized Response
    ↓
Results Display + Sources + Exports

🧪 Document Q&A Flow¶

Document Q&A uses uploaded files as source material for grounded analysis.

Upload Document
    ↓
Save Temporary File
    ↓
Extract Text
    ↓
Normalize Text
    ↓
Chunk Text
    ↓
Embed or Attach to Retrieval Workflow
    ↓
Ask Question
    ↓
Generate Grounded Answer
    ↓
Display Answer and Sources

🧬 Embedding Flow¶

Embedding workflows support local semantic search and retrieval.

Input Text or Document Chunks
    ↓
Normalize Content
    ↓
Generate Embeddings
    ↓
Store Vectors
    ↓
Score Similarity
    ↓
Return Relevant Chunks

📤 Export Flow¶

Export workflows convert working results into reusable artifacts.

Generated Answer / Prompt / Chat History / Analysis
    ↓
Format as Markdown, Text, PDF, or Structured Output
    ↓
Create Downloadable Artifact
    ↓
Review or Archive

🧰 Cross-Cutting Concerns¶

Several concerns apply across the full architecture.

Concern	Architectural Role
Configuration	Supplies provider keys, paths, defaults, and runtime settings.
Logging	Records wrapped exceptions and supports troubleshooting.
Retrieval	Grounds answers in uploaded documents, vector stores, file-search stores, or provider search tools.
Source Attribution	Preserves reviewability by exposing source references where available.
Session State	Keeps user selections and workflow state stable across Streamlit reruns.
Validation	Prevents empty prompts, invalid identifiers, missing files, and unsupported provider options.

✅ Design Benefits¶

Buddy’s architecture provides several practical advantages:

Benefit	Explanation
Provider Flexibility	GPT, Gemini, and Grok can evolve independently inside their own wrapper modules.
UI Consistency	Users interact with a common Streamlit interface despite provider differences.
Source-Driven Documentation	MkDocs can generate API documentation directly from Google-style docstrings.
Retrieval Support	Document, embedding, file-search, and vector-store workflows support grounded analysis.
Local Control	SQLite-backed storage keeps prompts, chunks, and local data workflows inspectable.
Maintainability	Provider-specific API changes can be handled in provider modules without rewriting the UI.
